Trigas Turbine Flowmeter DM-32 | 10 l/min to 1300 l/min

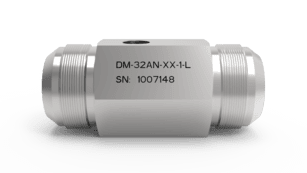

Reliable Turbine Flowmeter Trigasdm in Istanbul

Turbine flow meters are the ideal solution for demanding measurements. If you need features such as these below, turbine flowmeters from TrigasDM are produced exactly for thise types of solution:

  • High accuracy
  • Very fast response times
  • Compact design
  • High reliability in continuous operation
  • Fluctuating flow changes
  • Varying operating temperatures/viscosity

These types flowmeters can be used for a wide range of applications for professional works like:

  • monitoring the flow rates of fuels coolants or lubricants used in engine and engine construction
  • dosages in the food and beverage industry
  • pharmaceutical industry
  • monitoring and measuring ultrapure water during research.

Technical Properties

  • Flow range: 83 l/min to 1100 l/min
  • Flow range expanded: 10 l/min to 1300 l/min
  • Operating pressure: up to 250 bar
  • Pressure loss (at 70% linear flow): 0.34 bar
  • Temperature range: -270°C to 400°C
  • Response time: <3 ms
  • Calibration accuracy: ≤±0.03% of measured value
  • Repeatability: ≤±0.05% of measured value
  • Linearity in the linear flow range: ≤±0.5% of measured value
  • Linearity with linearization electronics: ≤±0.1% of measured value
  • K factor: 65 pulses/l
  • Max. frequency: 1400Hz
  • Housing and turbine material: stainless steel
  • Ball bearing material: Ceramic balls, stainless steel cage
  • Weight 2614g
  • Inner diameter: 44.5mm
  • Length: 154mm
  • Connection type: ON thread connection
  • Nominal connection width: 2″
  • Connection thread: 2-1/2" -12UNJ-3A
  • Pre-filtration: 50µ - recommended
  • Inlet route: 445mm - recommended
  • Run-out distance: 223mm - recommended
  • Standard viscosity: 1.3 mm²/s
