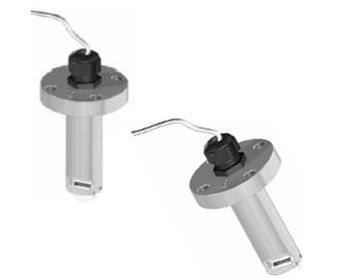

High-Pressure Dipping Type Turbine Flowmeter

Dipping Type Turbine Flowmeter for High Temperature

Turbine Flowmeter is used in all liquid having high pressure and high temperature.Free-solid-particle, simply and reliable.Even at low speed flowing liquid like 0,15 m/sec, Turbine flowmeter can measure the flow rate with high repeatability.It does not required very little or any maintenance with robust construction and proven technology.Safely can be connected to PLC or a any digital inputs system with Push-Pull (that is operable in both PNP and NPN input system) technology that new electronic technology.Can be easily mounted on the pipe in line diameter between DN40 and DN200 with specially designed connection apparatus.

Application Areas
  • Water Treatment Industrial
  • Textil Sektor
  • Drinking Water and Source Water Production Sector
  • Liquid Filling Machines
  • Water Distribution, Processing and Manufacturing Industry
  • Fitration Systems
  • Chemical Production Sector
  • Cold Water Monitoring
  • Swimming Pools
  • Pomp Protection
Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Brand: FIP (Made in Italya)
  • Type: F3.20.P.XX
  • Temperature: 120C
  • Pressure: 110 Bar
  • Mechanical Measurement: Between DN 45 and DN200 (1 ½” – 8”)
  • Flow Rate: 0,15 – 8 m/sec
  • Lineerity: at full scala 0,75 %
  • Precision: 1 %
  • Protection Class: IP68
  • Sensor Body: 316 Stainless Steel
  • Supply Voltage: 12 – 24 Volt DC
  • Output Signal: Puls Push-Pull (4-20mA optional)
  • Mounting Position: Horizontal and Vertical (up)
