Fixed Type Ultrasonic Flowmeter

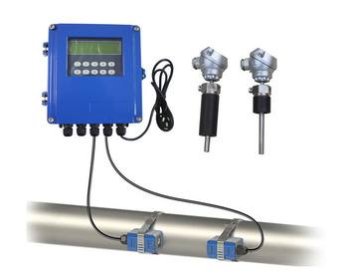

TUF 2000S Ultrasonic Flowmeter

TUF-2000S Constant Type Ultrasonic Flowmeter was designed to measure the rate of fluid flows passing from a closed line. Fixed type ultrasonic flowmeter doesn`t contact the liquid while measuring. This type of flowmeter don`t get dirty and does not require maintenance and also the installations are quick and easy. It is a very economical solution because it can be used in all pipelines between DN15 and DN6000. This type of flowmeter does not require any modifications such as cutting or drilling in the lines, its installation is very easy, fast and effortless.

TUF2000S Fixed Ultrasonic flow meter works according to the transit time principle and consists of two transducers: receiver and transmitter. Receiving and transmitting transducers are placed outside the line according to the distance calculated by the product.

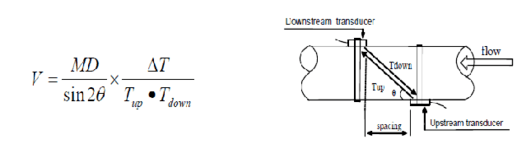

Transmitter transducer sends to sound frequency and this sound frequency is taken by receive transducer. This frequency signal transmission is provided by fluid in line between receiver and transmitter. Transmitter sends signal, receives takes to this signal and as a result, a time difference occurs. This time difference is directly related to speed of fluid. The following formula gives speed as a result of this relationship.

Sabit Tip Ultrasonik Debimetre TUF 2000S

Θ : Angle in flow direction

M : Ultrasonic signal transmission coefficient

D : Pipe diameter

Tup : Transmission time to signal of first transducer

Tdawn : Transmission time to signal of second transducer

ΔT=Tup –Tdown

Application Areas

  • Treatment Sector
  • Dam and Irrigation Lines
  • Water Distribution Networks of Public and Municipal
  • Wells and Irrigation Lines
  • Chemical and Petrochemical Lines
  • Food Sector
  • Fuel Sector
  • Measurable to Flow In All Liquid Lines

Technical Documentation

Technical Properties

  • Brand Model: Mitech - TUF2000S
  • Accuracy: % 0.5
  • Reparability: % 0.2
  • Precision: ± % 1 very good
  • Measured Period: 500ms
  • Display: Backlighting LCD Display
  • Analogue Output: 4-20mA, or 0-20mA, Impedance 0..1Kohm Precision 0,1%
  • OCT Output: Frequency Signal (1 – 9999 Hz)
  • Role Output: Can be assigned for 20 different signals.
  • Analogue Input: 3 Analogue Input and 3 wired PT100 signal input (optional)
  • Other Functions: Automatically 64 days / 64 months / 5 years record to total fluid value
  • Measured Pipe Materials: Steel, Stainless steel, cost iron, cement pipe (with specific sensor),
  • Copper, PVC, Aluminum, FRP and pipes have that linear different material.
  • Measured Liquid Types: Water, Sea Water, Industrial Wastewater, acid and alkali liquids, alcohol, oil, and so on.
  • Temperature: -30.....+ 90˚C (-30.....+ 160 ˚C Optional)
  • Speed: ± 32 m/s
  • Pipe Diameter: 15mm – 6000mm
  • Communication Protocol: Modbus, M-Bus, Fuji protocol, and Other Factory Protocol
  • Data Logger: External SD Card (optional)
