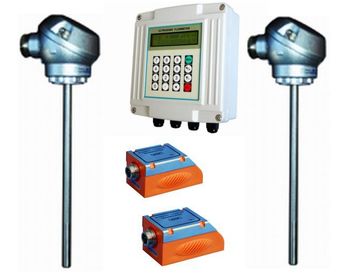

Ultrasonic Calorimeter TUC 2000C

Ultrasonic Calorimeter

TUC-2000C Ultrasonic Calorimeter is designed to measure the flow of fluid in a closed line and to calculate the amount of heat consumed.Ultrasonic Calorimeter does not contact to liquid when measuring and are attached on line with clamp. Not get dirty for there is not contact with liquid and maintenance is not required.Can be used at between DN15 and DN6000 all pipe line.Its mounted is very easy, quick and effortless does not require any modification such as cutting in line and drilling.TUFC 2000C Ultrasonic Calorimeter works according to the transit time principle to measure flow rate of fluid and speed.

Application Areas
  • At Heating and Cooling Systems to AVMs
  • Air Conditioning Sector
  • At Everywhwere Measured of Heat Transfer
Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Brand - Model:Mitech - TUC2000C
  • Accuracy:% 0.5
  • Repeatibility:% 0.2
  • Precision: ± % 1 very good
  • Measured Period:500ms
  • Display: Backlighting LCD Display
  • Analogue Output: 4-20mA, or 0-20mA, Impedance 0..1Kohm Precision 0,1%
  • OCT Output: Frequency Signal (1 – 9999Hz)
  • Role Output: Can be assigned for 20 different signal
  • Analogue Input: 3 analogue input and 2 adet 3 wired PT100 signal input
  • Other Functions: Automatically 64 days / 64 mounths / 5 years record to total fluid value
  • Measured Pipe Materials: Steel, Stainless steel, cost iron, cement pipe(with specific sensor), Copper , PVC, Aluminum, FRP and pipes have that lineer differnt material.
  • Measured Liquid Types: Water, Sea Water, Industrial Waste Water, acid ve alkali liquids, alchol, oil, and so on.
  • Measured Values: Instantaneous Flow, Total Flow, Speed of Fluid, Total Energy Amount, Instantaneous Energy Amount, Temperature Values,
  • Temperature: -30…..+ 90˚C (-30…..+ 160 ˚C Optional)
  • Speed :± 32 m/s
  • Pipe Daimeter: 15mm – 6000mm
  • Communication Protocol: Modbus, M-Bus, Fuji protokol, and Other Factory Protocol
  • Data Logger: External SD Card (optional)
