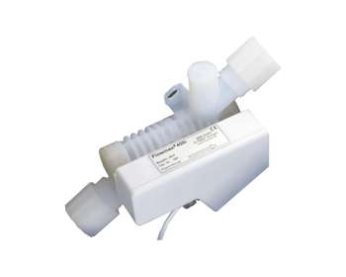

Ultrasonic Flow Meters at the Highest Level – Flowmax 400i

ultrasonic-flowmeter-flowmax400i

Flowmax 400i is a flow meter which calculates the volume flow of liquids. Based on the ultrasonic technology this model is able to measure conductive and non-conductive liquids contact free.

Flowmax is completely wear-free and it has no moving parts. The design of the pipe minimizes dead space over the entire geometry.

Flowmax 400i is a flow meter which calculates the volume flow of liquids. Based on the ultrasonic technology this model is able to measure conductive and non-conductive liquids contact free.

Flowmax is characterized by its high measurement accuracy and repeatability. This model has integrated empty pipe detection. Optionally Flowmax have a PID controller function. The calculated flow is provided with a response rate of a few milliseconds on the outputs.

Flowmax has a preset quantity counter by default. The start signal can optionally be fed from the outside. A control signal for activation of the pump or valve control is also standard.

Flowmax 400i is very good for operation with piston diaphragm and peristaltic pumps.

Technical Properties

  • Brand: MIB GMBH German
  • Model: Flowmax 400i
  • Nominal diameter: 3/8“, 1/2“, 3/4“, 1“
  • Protection class: IP 65
  • Compressive Resistance: 6 Bar
  • Material: pipe PFA (Perfluoralkoxy)
  • electronics PP (Polypropylene)
  • nut PVDF (Polyvinylidene fluoride) or PFA
  • Power Input: Power input = 3.6W at 24VDC
  • Connection Connector: 5-pin, 8-pin optional
  • Storage temperature: -20 .... +60 °C
  • Fluid Temperature: 0 .... +60 °C
  • Current output: 0/4 ... 20 mA,
  • Frequency: 0 ... 10kHz
  • Power supply: 24VDC, ca. 3.6W
  • Electrical connection 5 or 8-pin plug, alternative 10-cors teflon-coated cable, length 5m
  • Input 1 digital input, usable for dosing start
  • Outputs: 2 digital outputs, configurable as pulse output or empty pipe alarm,
  • Current output configurable 0/4-20mA, RS485-data interface.
  • Max. error of measurement ±2%o.r. ±3mm/s (o.r. = of reading), option ±1%o.r. ±3mm/s
  • Reference conditions: (VDI/VDE 2642)
  • Repeatability ≤ 0.5
