Flow Indicator Flowcon 200i

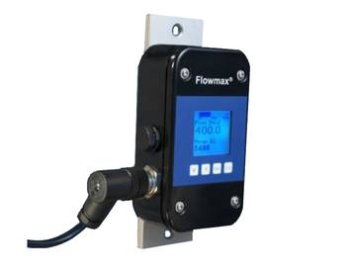

Flow Indicator Flowcon 200i | Ultrasonic Flowmeters

FlowCon is an external display and programming unit which can be used with Flowmax ultrasonic flow meters. FlowCon also can be permanently installed as a separate display for Flowmax. Alternatively, the FlowCon serves as a mobile unit for commissioning or commissioning the Flowmax in the field. when it's difficult to reach Flowmax or it does not have a display. Configured Flowmax outputs retain full functionality using FlowCon. Output signals such as analog, pulse or alarm output can be used for further processing by external systems such as PLCs, loggers or external counting units. The FlowCon's display has an illuminated background and offers visualization of the current counter and current flow in the Flowmax, as well as possible errors detected by the Flowmax. All functions available on Flowmax as scale values like an analog output, pulse value, internal counter reset etc. can be changed via the keypad on Flowmax. Using the supplied plug-in power supply and Y/T plug, the device combination FlowCon/Flowmax can be operated independently of the plant's power supply.

Technical Properties

  • Brand: MIB GMBH German
  • Model: Flowcon 200i
  • Protection class: IP 65
  • Material: PSU polysulfone
  • Power supply: 18…30VDC, 3.6 Watt
  • Connection: 5-wired cable with plug
  • Ambient temperature: +5 .... +60 °C
  • Digital Output1: NPN and PNP selectable Pulse Output
  • Digital Output2: NPN and PNP selectable pipe empty alarm
  • Data Interface: Data interface for parameterization
  • Repeatability: 0.5%
  • Display and configuration unit Flowcon 200i meets EMC regulations
  • Requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN
  • 61000-4-4, EN 61000-4-5, EN 61000-4-6. Complies with the requirements
  • It complies with EC directives and has CE certification.
