Ultrasonic Open Channel Flow Meters

Open Channel Ultrasonic Flow Meters - Reliable Dealer

An ultrasonic flow meter uses sound waves to determine the speed and amount of liquid flowing through a pipe. The frequency of the ultrasonic wave sent to a pipe and its reflections from the fluid are the same. If the fluid is flowing, the frequency of the reflected wave is different due to the droppler effect. As the fluid moves faster, the frequency shift increases linearly. The wave transmitter in ultrasonic flow meters processes and calculates reflections from the transmitted wave to determine the flow rate. Click here for more information.

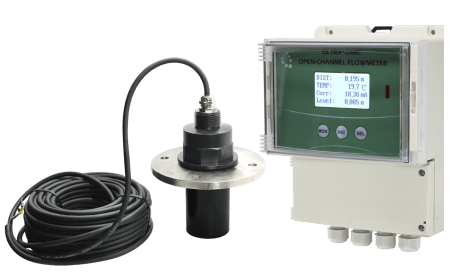

Open channel ultrasonic flow meters are products that measure and record the instantaneous and total flow rate in a channel. This type of flow meters are non-contact products mounted on the channel to be measured. Since the product is contactless and has an IP68 protection class, it does not require maintenance and it is also not affected by rain.

Application Areas

  • Open Channel Flow.
  • Water treatment.
  • Sewage treatment.
  • Irrigation.
  • Industrial wastewater.
  • Power wastewater.
  • Environmental monitoring.
  • Special flow requirements for unusual flow channels.

Technical Properties

  • Power Supply: DC24V (+5%) 0.2A; AC220V (+20%) 0.1A ;Optional DC12V
  • Display: Backlit LCD
  • Flow Rate Range: 0.0000~99999L/S or m3/h
  • The maximum ofAccumulative Flow: 9999999/9 m3/h
  • Accuracy of Change in Level: 1mm or 0.2% of full span (whichever is greater)
  • Resolution: 1mm
  • Analogue Output: 4-20mA, corresponding to instantaneous flow
  • Relays Output: Standard 2 relay outputs(Optional up to 6 relays)
  • Serial Communication: RS485, MODBUS-RTU standard protocol
  • Ambient Temperature: -40°C~70°C
  • Measure Cycle: 1 second (selectable 2 seconds )
  • Parameter Setting: 3 induction buttons / remote control
  • Cable gland: PG9 /PG11/PG13.5
  • Converter Housing Material: ABS
  • Converter Protection Class: P67
  • Sensor Level Range: 0~4.0m ;other level range also available
  • Blind zone: 0.20m
  • Temperature Compensation: Integral in probe
  • Pressure Rating: 0.2MPa
  • Beam Angle: 8° (3db)
  • Cable Length: 10m standard (can be extended to 1000m)
  • Sensor Material: ABS, PVC or PTFE (optional)
  • Sensor Protection Class: P68
  • Connection: Screw (G2) or flange (DN65/DN80/etc.)
