Line Type Ultrasonic Flowmeter

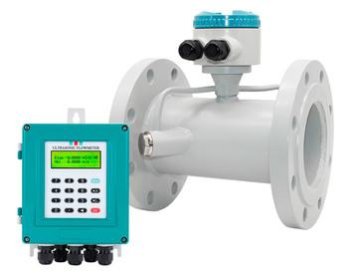

Line Type Ultrasonic Flow Meter - Affordable Prices

Ultrasonic flow meter is designed to measure the flow of liquids passing through pipes. Ultrasonic flow meters do not require maintenance, because they do not have any moving parts in the pipe. As a result , the ultrasonic flowmeter does not cause pressure drop and shows excellent performance. It can be used in all liquids that can transmit sonic signals. Depending on the ultrasonic flowmeter measurement principle, whether the liquids are conductive or insulating has no effect on the measurement. For this reason, it is preferred for use in many different liquids.

Technical Properties

  • DMS-200PT
  • Accuracy: ≤ 1%
  • Fluid Velocity: 0 ~ ± 10 m/s,
  • Pipe Size: DN15 - DN400 mm
  • Sensor max. Temperature: -30℃~160℃
  • Liquids to use: Almost all liquids.
  • Pipe Material That Can Be Connected: Steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber, etc.
  • Signal Output: 4 ~ 20 mA + Pulse + Relay Output
  • Signal Input: 4-20mA, three channels, available for data collector.
  • PT100 Input for calorimeter: two channels can be used for calorimeter.
  • Communication interface: Isolated RS485 serial interface, Modbus support.
  • Power supply: 8~36V DC, 10~30V AC
