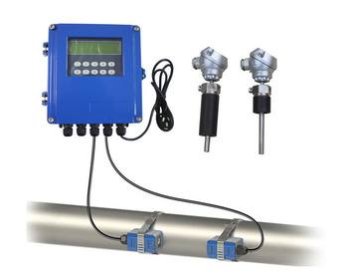

Ultrasonic Calorimeter TUC 2000C

Ultrasonic Calorimeter TUC 2000C

TUC-2000C Ultrasonic Calorimeter is designed to measure the flow rate of the fluid passing in a closed line and calculate the amount of heat consumed. This type of calorimeter does not contact liquid when measuring. It is attached on a line with a clamp, that's why it's not get dirty and does not require maintenance. TUFC 2000C Ultrasonic Calorimeter works according to the transit time principle to measure flow rate of fluid and speed.

Application Areas

  • At Heating and Cooling Systems to AVMs
  • Air Conditioning Sector
  • At Everywhwere Measured of Heat Transfer

Technical Properties

  • Brand - Model:Mitech - TUC2000C
  • Accuracy: % 0.5
  • Repeatibility: % 0.2
  • Precision: ± % 1 very good
  • Measured Period: 500ms
  • Display: Backlighting LCD Display
  • Analogue Output: 4-20mA, or 0-20mA, Impedance 0..1Kohm Precision 0,1%
  • OCT Output: Frequency Signal (1 – 9999Hz)
  • Role Output: Can be assigned for 20 different signal
  • Analogue Input: 3 analogue input and 2 adet 3 wired PT100 signal input
  • Other Functions: Automatically 64 days / 64 months / 5 years record to total fluid value
  • Measured Pipe Materials: Steel, Stainless steel, cost iron, cement pipe(with specific sensor), Copper , PVC, Aluminum, FRP and pipes that have different materials.
  • Measured Liquid Types: Water, Sea Water, Industrial WasteWater, acid ve alkali liquids, alcohol, oil, and so on.
  • Measured Values: Instantaneous Flow, Total Flow, Speed of Fluid, Total Energy Amount, Instantaneous Energy Amount, Temperature Values,
  • Temperature: -30…..+ 90˚C (-30…..+ 160 ˚C Optional)
  • Speed: ± 32 m/s
  • Pipe Daimeter: 15mm – 6000mm
  • Communication Protocol: Modbus, M-Bus, Fuji protokol, and Other Factory Protocol

  • Data Logger: External SD Card (optional)
