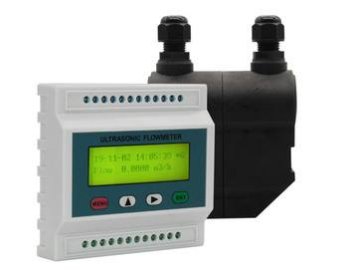

Rail Mounted Modular Ultrasonic Flowmeter


Ultrasonic flowmeter is used to measure the flow rate of liquids passing through the pipe. Thanks to
the sensors attached to the pipes with clamps, this type flow meter does not require any action on
the pipe. Thanks to their external clamp connection to the pipe, ultrasonic flow meter sensors do not
require maintenance and also It does not cause pressure loss and is very simple to install. Due to
these features, ultrasonic flow meters provide advantages in many areas.

Technical Properties

  • DMS-200M
  • Accuracy: ≤ 1%
  • Fluid Velocity: 0 ~ ± 10 m/s,
  • Pipe Size: DN15 - DN6000 mm
  • Sensor max. Temperature: -30℃~160℃
  • Liquids to be used: Water, seawater, sewage, beer, alcohol, Acid-based liquid, oils, etc.
    Pipe Material That Can Be Connected: Steel, stainless steel, cast iron, copper, PVC, aluminum, glass
    fiber, etc.
  • Signal Output: 4 ~ 20 mA + Pulse + Relay Output
  • Signal Input: 4-20mA, three channels, available for data collector;
    PT100 Input for calorimeter: two channels can be used for calorimeter.
  • Communication interface: Isolated RS485 serial interface, Modbus support.
  • Power supply: 8~36V DC, 10~30V AC
