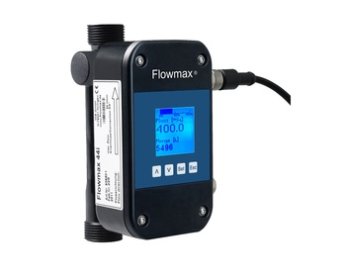

Flowmax 44i is a flow meter calculating the volume flow of liquids.

Flowmax 44i is based on the ultrasonic technology. The model is able to measure conductive and non-conductive liquids contact free. This type of flowmeter has no moving parts and is absolutely free of wear and the design of the pipe minimizes dead space over the whole geometry. All parts having contact to the medium are PPSU. Flowmax is able to measure all kinds of liquids like: DI-Water, Body care liquids, Cosmetics, liquid food, and also aggressive and/or toxic acids and alkalis thanks to its technical properties. This type of flowmeter is characterized by its high measurement accuracy and repeatability. Empty pipe detection is integrated in this model. Optionally Flowmax have a PID controller function. The calculated flow is provided with a response rate of a few milliseconds on the outputs.

Flowmax has by default a preset quantity counter and the start signal can optionally be fed from the outside. A control signal for activation of the pump or valve control is also standard.

For operation with piston diaphragm and peristaltic pumps Flowmax 44i is suitable.

Technical Properties

Brand: MIB GMBH German
Model: Flowmax 44i
Nominal diameter: DN10-3 / 8 ”, DN15-1 / 2”, DN20-3 / 4 ”, DN25-1”
Mechanical Connection Internal Thread: Thread G, Thread NPT, Clamp connection DIN 11864-3 BKS-Clamp Form A
Fluid Temperature: 0...+80 °C
Protection class: IP 67
Pressure Resistance: Pressure nominal 16 Bar / 232 Psi for DN10 -⅜” and DN15 - ½” 10 Bar / 145 Psi for DN20 -¾” and DN15 - 1”
Material: Material of all wet parts made of PPSU (Polyphenylsulfone) Electronic housing made of PPSU (Polyphenylsulfone)
Power supply: 18 ... 30VDC
Power Input: 3.6W at 24VDC
Connection Connector: 5-pin, 8-pin optional
Ambient temperature: 0 .... + 60°C
Storage temperature: 0 .... + 70 ° C
Current output: 0/4 ... 20 mA, Lower and upper limit adjustable,
Grounding Connected to supply ground
Error Signal according to NAMUR NE43 with 4Z20mA
Dijital Çıkış: NPN ve PNP-lojik üzerinden Q1 / 2 dijital çıkışı, maks. 100mA
DIN 19240'a göre çıkış voltajı:
≤5V, DÜŞÜK anlamına gelir
≥12V YÜKSEK anlamına gelir
Kısa devre korumalı
Frequency: 0...10kHz
Data Interface: Data interface for parameterization
Measurement deviation: ±2% of reading ±3 mm/s (±6 mm/s for DN10 - ⅜”)
Optional ±1% reading ±3 mm/sec (±6mm/sec for DN10 - ⅜”)
According to reference conditions (VDE / VDI 2642)
Measuring range: 0.3 - 21 l/min DN10 - ⅜”
0.9 - 36 l/min DN15 - ½ “
3.5 - 60 l/min DN20 - ¾ “
5.0 - 240 l/min DN25 - 1"
Repeatability: 0.5%
Flowmax 44i measuring system meets general EMC requirements
Requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. Compatible with
Meets the requirements of EC directives and CE certification
