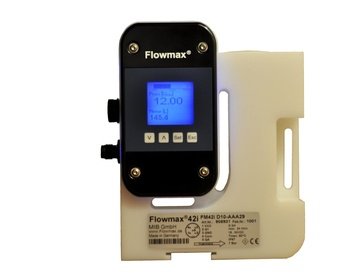

Flowmax 42i is a flow meter calculating the volume flow of liquids. Based on the ultrasonic technology Flowmax 42i is able to measure conductive and non-conductive liquids contact free. This model has no moving parts and is absolutely free of wear. Flowmax`s design of the pipe minimizes dead space over the whole geometry. All parts having contact to the medium are PE-HD. Thanks to its technical properties this flowmeter is able to measure all kinds of liquids like: DI-Water, Body care liquids, Cosmetics, liquid food, and also aggressive and/or toxic acids and alkalis. You can characterized flowmax by its high measurement accuracy and repeatability. It have empty pipe detection. Optionally Flowmax has a PID controller function and the calculated flow is provided with a response rate of a few milliseconds on the outputs.

The model has by default a preset quantity counter. The start signal can optionally be fed from the outside and the control signal for activation of the pump or valve control is also standard.

Flowmax 42i is suitable for operation with piston diaphragm and peristaltic pumps.

Technical Properties

  • Brand: MIB GMBH Alman
  • Model: Flowmax 42i
  • Nominal diameter: DN3, DN5, DN7, DN10, DN15
  • Mechanical Connection: Thread G, Thread NPT, Clamp connection
  • DIN11864-3 BKS-Clamp Form A
  • Protection Class: IP 67
  • Compressive Resistance: 7 Bar
  • Material: PE-HD (Polyethylene)
  • Power supply: 18 ... 30VDC
  • Power Input: Power input = 3.6W at 24VDC
  • Connection Connector: 5-pin, 8-pin optional
  • Storage temperature: 0 .... +50 °C
  • Fluid Temperature: 0 .... +50 °C
  • Current output: 0/4 ... 20 mA, Lower and upper limit can be adjusted,
  • Grounding Connected to supply ground
  • Error Signal according to NAMUR NE43 with 4Z20mA
  • Digital Output: Digital output Q1/2 via NPN and PNP-logic, max. 100mA
  • Output voltage according to DIN 19240:
  • ≤5V means LOW
  • ≥12V means HIGH
  • Short circuit protected
  • Frequency: 0...10kHz
  • Data Interface: Data interface for parameterization
  • Measurement deviation: ±2% of reading ±3 mm/s (±6 mm/s for DN3)
  • Optional ±1% reading ±3 mm/sec (±6 mm/sec for DN3)
  • According to reference conditions (VDE / VDI 2642)
  • Measuring range: 0.015 – 1 l/min DN 3
  • 0.024 – 3 l/min DN 5
  • 0.09 – 6 l/min DN 7
  • 0.3 – 24 l/min DN10
  • 0.9 – 60 l/min DN15
  • Repeatability: 0.5%
  • Flowmax 42i measuring system meets general EMC requirements
  • Requirements according to CE, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3,
  • EN 61000-4-4, EN 61000-4-5, EN 61000-4-6. Compatible with
  • Meets the requirements of EC directives and CE certification
