Ultrasonic Level Transmitter

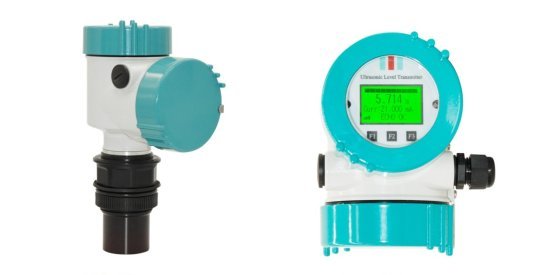

Ultrasonic Level Transmitter in Istanbul

Ultrasonic Level Transmitter provides continuous level measurement in liquids and solids. It also performs volumetric measurement and flow measurement in open channels. The ultrasonic level transmitter is an electrical 4-wire transmitter. Ultrasonic Level Meter measures level and volume in closed and open tanks with high precision. All models have IP65 protection class.

  • Non-contact continuous measurement
  • Detection materials: Liquids
  • Measuring range: 25M
  • Adopts temperature compensation technique (speed and frequency)
  • Independent of changing process conditions (density, wave, foam)
  • Detection frequency: 50KHz
  • Connection: G2"
  • Cable entry: M20 x P1.5

Technical specifications

  • Level Range: 5,10,15,20
  • Accuracy: 0.5% - 1.0%
  • Resolution: 3 mm or 0.1%
  • Display: LCD Screen
  • Output: Two-wire 4 ~20mA / 250Ω Load, HART
  • Relay Output: Optional
  • Power Supply: Standard 24VDC
  • Ambient Temperature: -20~ +60C, Sensor -20~ +80C
  • Communication: RS 485 MODBUS optional
  • Protection Class: Sensor IP65, Converter IP68
  • Cable: if its separated 10m
  • Probe Setup: According to level range
