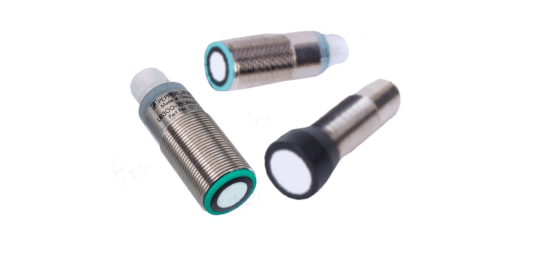

Ultrasonic Level Transmitter UA18CAD

High Quality Ultrasonic Level Transmitter UA18CAD

UA18CAD, Ultrasonic Level Transmitter

Cylindrical M18 PBT body
Detection distance: 50-2200 mm
Power supply: 15-30 VDC
Outputs: Two multi-function switching outputs PNP or NPN
Setting: Normal switching or adjustable hysteresis
Protection: Short circuit, reverse polarity and overvoltage
Degree of protection: IP67
2m Cable or M12 plug

Technical Properties

  • Brand/Model: UA18CAD
  • Detection Distance: 50-2200mm
  • Power Supply: 15…30 VDC
  • Output: PNP/ NPN two switching outputs
  • Operating Temperature: -20… +60 °C
  • Cable Entry: M12 / 2m cable
  • Protection Class: IP67
  • Installation: Normal switching or adjustable
  • Body Material: PBT
