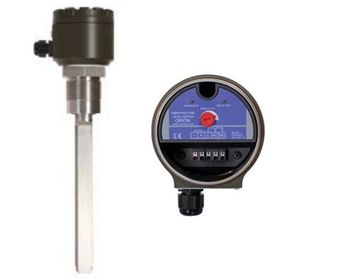

Vibrating Type Level Switch

Application Areas

Vibration Level Switch can be used for all kinds powder and coarse grained of materials level measurement inside all conteiner and type of silo.It also does not cause a faulty measurement because of over the product may occur sediments and layers.

  • Construction Sector: Lime, perlite, fine sand, dolomite, calcite, gypsum, cement
  • Food Sector: Milk powder, flour, salt, sugar
  • Plastic Sektor: Plastic particles
  • Timber Sector: Sawdust, glue, resin
  • Chemical Sector: Fuel, oil, gasoline, diesel, benzen
Function

Vibration level switch is attached side wall of silo and conteiner. When filled to the level where the sensor material in the silo give relay output by detecting to the level. Formed vibration as the piezoelectric continues up to 85 Hz to probe. Because of covering environmental probe of granular material, vibration frequency falls lower from 85 Hz. Consisting of this difference is perceived as electronics. Accordingly, the output signal is generated.Due to vibration feature of the probe self-cleaning.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties/Electrical Properties
  • Signal Delay: Maximum 1 sec
  • Precision: Adjustable
  • Vibration Frequency: 85Hz
  • Supply Voltage: 15..35V DC while in charged max. 3w
  • Signal Output: 1 pieces enversor contact AC max. 250V, 2A, 500VA resistive load
  • Warning Led: Output Green-led
  • Protection Class: IP68
Technical Properties/Mechanical Properties
  • Box: Aluminum
  • Prob: IP 68 or EN 60529
  • Connection Material: Stainless steel SS304
  • Connection Size: R 1½. “
  • Prob Material: Stainless steel SS304
  • Material Outer Surface: Electrostatic powder dye RAL6014
  • Weight: 1,3 kg
Technical Properties/Working Conditions
  • Surrounding Temperature (external ambient): -20°C.. +60°C
  • Working Temperature (material): -20°C.. +100°C / -20°C.. +180°C option
  • Minimum Power Density: 20 g/l …… 150 g/l
  • Maximum Portion Size: 8mm
  • Maximum Mechanical Load: from side 200N (over prob load)
  • Maximum Mechanical Tork: 200 Nm
  • Maximum Stress Force: 1kN
  • Maximum Withstand Pressure: 20 bar
