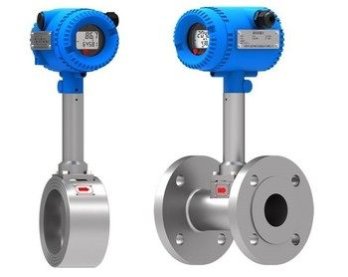

Standard Type Vortex Flowmeter Flanged or Waffer Type

Vortex Flowmeter with Competitive Price, Flowmeters

VFM60MV vortex flowmeter has risen to the upper category of vortex flowmeters with its excellent signal processing ability. This feature gives the vortex flow meter a lower measurement limit, a stable measurement and high sensitivity. Vortex flowmeter's special signal processing method also provides anti-vibration feature, enabling it to eliminate vibration signals.

  • Vortex flowmeter Low measurement speed for Steam, Gas Very low pressure loss due to no moving parts
  • Isolated design for electrical components to eliminate interference
  • Conversion rate is as wide as 1:40
  • Remotely monitor data and perform all configurations thanks to Bluetooth connection feature

APPLICATION

  • Saturated/Superheated Steam measurement and monitoring of their transfer
  • Measuring steam boiler systems
  • Gas Measurement in Different Processes
  • Flow measurement of liquids, especially non-conductive liquids

Technical Properties

  • Fluid to Measure: Liquid, Vapor, Gas
  • Connection Diameters: Waffer/Flanged DN15 ~ DN300mm
  • Measuring range: Liquid 0.5 ～ 7 vapor or gas 5 ～ 70
  • Precision: ±1%
  • Repeatability: 0.3% OD
  • Signal Output: 4-20mA @ HART/RS-485
  • Process Temperature: -40 ~ 280; -40~350;
  • Ambient temperature range: -40 ～ 85 ℃
  • Wet Parts: 304 Stainless Steel, 316 Stainless Steel
