Vortex Flowmeter with Temperature and Pressure Compensation

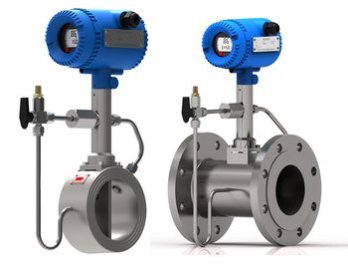

Vortex Flowmeter For Reliable Measurement Flow, Flow Meters

VFM60MV Multivariable vortex flowmeter offers the most reliable measurement flow. It’s an accurate measurement in flow and in steam and gasses with its integrated temperature and pressure meter. Because in a flow meter without compensation, changing density due to pressure and temperature changes causes a large error in flow rate measurement. With its Bluetooth software, users can remotely access all vortex flowmeters via wireless connection. Users can remotely access the device with their mobile phones or tablets, see data, read settings, and make adjustments.

  • Vortex flowmeter is an excellent method for measuring the flow rate of superheated steam, saturated steam, as well as liquids and gases.
  • It is an ideal product for measuring the flow rate of dry / wet compressed air lines of compressors.
  • Isolated design for electrical components to eliminate interference
  • Conversion rate is as wide as 1:40
  • Remotely monitor data and perform all configurations thanks to the Bluetooth Connection feature


  • Saturated/Superheated Steam measurement and monitoring of their transfer
  • Measuring steam boiler systems
  • Gas Measurement in Different Processes
  • Flow measurement of liquids, especially non-conductive liquids

Technical Properties

  • Type: VFM60MV / Comate Flowmeter
  • Fluid to Measure: Liquid, Vapor, Gas

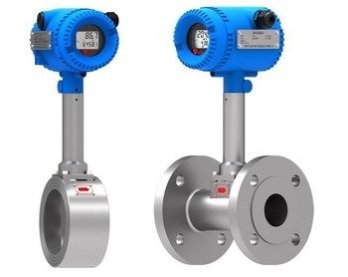

  • Connection Diameters: Waffer/Flanged DN15 ~ DN300mm
  • Measuring range: Liquid 0.5 ~ 7 vapor or gas 2 ~ 70
  • Precision: ±1%
  • Repeatability: 0.3% OD
  • Signal Output: Pulse, 4-20mA @ HART / RS-485 Modbus
  • Process Temperature: -40 ~ 280; -40~350;
  • Ambient temperature range: -40 ~ 85 ℃
  • Wet Parts: 304 Stainless Steel, 316 Stainless Steel
  • Compensation: Temperature and pressure compensated
