BIP STOP Level Switch for Pump Control

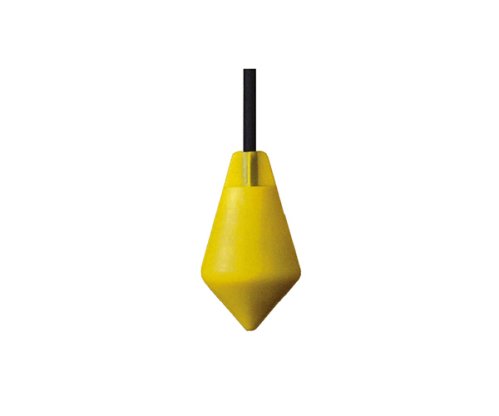

BIP STOP for level control of individual pumps

BIP STOP is a small float switch used to control small pumps automatically. It can be linked directly to pumps up to 1.5 HP or via a relay when working with high power pumps. BIP STOP protects the pump's motor and electrical panels from shock due to its 110º broad opening angle. It can be used in agitated liquids.


The pump's motor is protected from shock by a 110º switching angle. Because of its biconical design, which avoids clogging, it requires little maintenance. It's simple to set up and utilize. Ecological float switch (no lead, no mercury)


Clean, clear liquids, rainwater, certain types of wastewater slightly aggressive liquids (oil, mud, paint, etc.) and more aggressive liquids if HR HY cable is available drain/fill function overflow or dry running protection high/low level alarm.

Technical Properties:

  • Working mode: Omnidirectional
  • Permissible liquid density: 0.70 Â 1.15
  • Maximum pressure: 3.5 bar
  • Permissible temperature: 85 ° C
  • Protection class: IP 68
  • Power supply: 250 VAC / VDC - 50/60 Hz
  • Breaking power: 20 (8) A (20 A resistive - 8 A inductive)
  • House materials: Copolymer polypropylene
  • Cable 3 cond. 1 mm²: Neoprene or HR HY
  • Weight without cable: 105g
  • Cable weight: Neoprene 115g/m - HR HY 110g/m
  • Ballast: Loaded resin 175g or 250g - plastic 200g - clipable 275g
  • Standard cable length: (serial) 3, 5, 10,15 and 20 m
