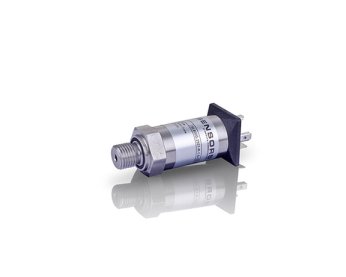

BD Sensors Pressure Transmitters

BD Pressure transmitter is used in all areas. These are products that measure the pressure of the system and convert the measured pressure into an electrical signal.

Application areas:

• Pressure meters
• Energy sector
• Food industry
• Pharmaceutical industry
• Chemical Industry
• Textile
• Machine
• Mobile hydraulics

Technical Properties:

• Brand, Model: BD, 30.600 G
• Pressure Measurement Range: Between 0...10 mbar and 6000 bar
• Mechanical Connection Size: 1/4", 1/4" NPT
• Electrical Output: 4-20 mA / 2 Wire, 0-10VDC / 3 Wire, 0.5-4.5V / 3 Wire rat.
• Supply: 8 ... 32 VDC
• Sensor Technology: Ceramic Sensor
• Diaphragm Material. : AISI316L
• Body Material. : AISI304
• Temperature Range: -25 ̊C ... 125 ̊C
• Stability: 0.2% FS/year
• Accuracy: ±1%
