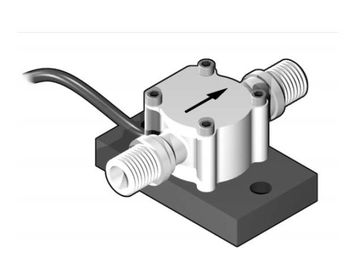

FlowX3 Ultra Low Turbine Flow Meter

Compact Ultra Low Flow Sensor ULF was designed for using with all types of liquid free solid particles.Flowmeters is connected to flexible or hard pipe thanks to ¼” gear process connection.

Application Areas

• Water Treatment Industry
• Chemical Industry
• Drug Industry
• Dosage Systems
• Laboratory

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Brand: FIP ( Made in Italya)

• Type: ULF01, ULF03

• Temperature : -10…+ 80C

• Pressure: 5 Bar

• Connection Measurement: 1/4” G

• Flow Range: for ULF01 1,5 – 100 L/H, for ULF03 6 – 250 L/H

• Lineerity: at full scala 1 %

• Precision: 1 %

• Protection Class: IP65

• Sensor Body: POM

• Supply Voltage: 5 – 24 Volt DC

• Output Signal: Puls or 4-20mA

• Mounting Position: Horizontal or Vertical (up)
