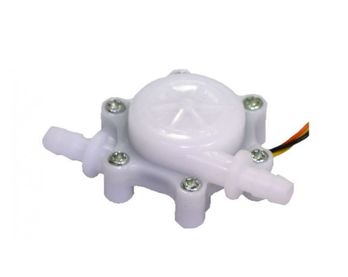

DMS 08 P Miniature Turbine Flow Meter

Application Areas

• Water Treatment Industry
• Chemical Industry
• Drug Industry
• Dosage Systems
• Laboratory

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Type: DMS 08 P

• Temperature : -10…+ 80C

• Pressure: 10 Bar
• Connection Measurement: 1/4” or Hose Connection

• Flow Range: 0,15 -3 L/DK

• Lineerlik: at full scala 1 %

• Precision: 1 %

• Protection Class: IP65

• Sensor Body: Plastic
• Supply Voltage: 4,5 – 24 Volt DC
• Output Signal: Puls NPN
• Mounting Position : Horizontal and Vertical (up)
