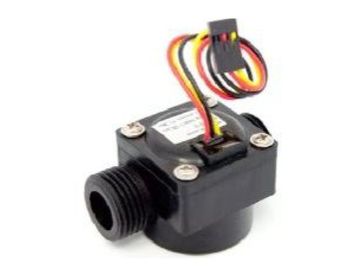

DMS P Series Plastic Turbine Flow Meter

Applications Areas

• Water Treatment Industry
• Chemical Industry
• Drug Industry
• Dosage Systems
• Laboratory

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Type: DMS P 015, DMS P020,DMS P 025

• Temperature: -10…+ 80C

• Pressure: 10 Bar
• Connection Measurement: 1/2”, ¾” ve 1”

• Flow Range: 1 -30 L/MIN, 3 – 50 L/MIN, ve 4 – 60 L/MIN

• Lineerity:at full scala 1 %

• Precision: 1 %

• Protection Class: IP65

• Sensor Body: ABS
• Supply Voltage: 4,5 – 24 Volt DC
• Output Signal: Puls NPN
• Mounting Position : Horizontal and Vertical (up)
