Vibrating Rod Level Switch for Solid DMS VF(L), VR Series

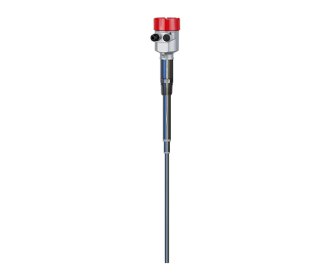

Reliable Vibrating Rod Level Switch for Solid

VF (L)/ VR are universal level switches for powders and fine-grained bulk materials. The level switch consistently and robustly detects the minimum or maximum level. The vibrating rod is suited for usage in adhesive and abrasive applications, as well as bulk solids with extremely low density.


  • Various Process Connection
  • No Calibration Required
  • Mounting on the top or side of the storage vessel
  • Low costs for maintenance through robust design
  • Minimum time cost expenditure thanks to simple setup without medium
  • Reliable function through product-independent switching point

Technical Properties:

  • Operating Voltage: Autoadaption 20-35V DC 30-250V AC
  • Power consumption: 1.5W(Max.)
  • Isolation voltage: 1500V(Min.)
  • Overvoltage protection: CAT III
  • Output: Realy DPDT
  • Output capacity: 250VAC, 3A; 30VDC, 1A
  • Delay time: 0-30s adjustable
  • Switching delay: <1.0s
  • Electrical connections: M20X1.5
  • Ambient temperature: -40 to +70°C
  • Process temperature: -40°C....250°C( for VR series max. 150°C)
  • Process pressure: -0.1....1.6 MPa (For VR series0.1....0.6 MPa)
  • Process fitting: Threaded 1 1/2’’ BSPT
  • Material of probe: SUS 304/316L
  • Meausuring range: 4m (max)
  • Insertion length: VF 175mm
  • VFL 200 ~ 4000 mm
  • VR 1000 ~ 10 000 mm
  • Frequency: 160 Hz
  • Density of liquid: 0.01g/cm3
  • Protection class: IP67
