AAlborg XFM Digital Mass Gas Flow Meter

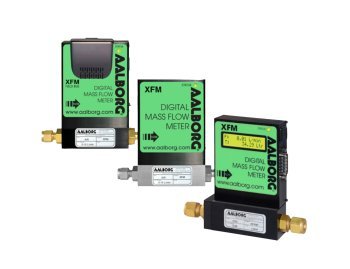

Digital Mass Gass Flow Meters

XFM Flow Flow unit can be displayed with 23 different volumetric flow or mass flow engineering units specific to the user. The flowmeter can be programmed via RS-232 / RS-485 or Profibus.

AAlborg XFM includes functions such as a programmable flow collector, 2 relay outputs for low and high flow alarm, automatic zero adjustment, selectable analog outputs with 4-20mA and 0 -5 Vdc jumpers, and the ability to store calibration values for 10 different gases.

Technical Properties

Brand / Model: Aalborg / XFM07, XFM17, XFM37, XFM47, XFM57, XFM67, XFM77
Analog Output: 4 - 2mA, 0 - 5 VDC
Digital Output: RS485, RS232, Profibus are Optional
Accuracy: ± 1.0%
Sampling Time: 600ms F.S 25% to over 100% Within ±2% of actual flow rate
Ambient temperature: 0….50°C
Measurement Gases Ability: to select up to 32 different gases with 10 Calibration
Supply Voltage: 11 - 26 Vdc
Fluid Contact Surface Material: Aluminum or 316L rust. Steel
Operating temperature -10…50°C
Display 2X16 LCD
Pressure 500 PSI Max
Measuring Range 0 - 0.5l/min to 0-1000 L/min
Line Diameter 1/4" - 3/4" Compression
O-Ring Buna-N, Viton EPR/Kalrez
