Dimens 6800T Turbidity/Suspended Solids Analyzer

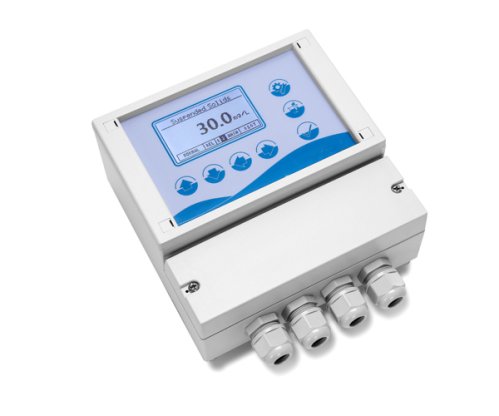

Cutting-Edge Dimens 6800T: Turbidity & Suspended Solids Analysis

Elevate Your Water Quality Analysis with the Dimens 800T Turbidity/Suspended Solids Analyzer!

Our cutting-edge Dimens 6800T Analyzer is meticulously designed based on the ISO 7027-compliant 90° scattered light principle, delivering accurate measurements of turbidity and suspended solids. As light travels through the solution, some gets absorbed and scattered while the rest passes through. By gauging the intensity of scattered light from particles within the water, this analyzer determines the turbidity and suspended matter in the water sample.

It's equipped with the highly reliable Dimens 810T sensor, allowing for precise measurement of turbidity up to 1000 NTU or suspended solids up to 2000 mg/L.

Key Features:

Advanced Optical Technology: Our analyzer employs innovative optical technology to ensur e consistent concentration measurement. The 90° light scattering technology guarantees accurate results.

Reliable Materials: Featuring stainless steel electrodes, this analyzer is built for robustness and reliability, ensuring it withstands demanding environmental conditions.

Technical Specifications:

Measuring Parameters:

  • Turbidity Range: 0.0-4.0 / 40.0 / 400.0 / 1000.0 NTU
  • Suspended Solids Range: 0.0-10.0 / 100.0 / 1000.0 / 2000.0 mg/L
  • Resolution: 0.1 NTU, 0.1 mg/L
  • Accuracy: ±2 f.s.

Input:

  • Measuring Sensor: Dimens 810T Turbidity/Suspended Solids Sensor

Output:

  • Analog Output 1: 4-20 mA isolated current output for suspended solids sensor, adaptable to any segment of the measuring scale (Max. 600Ω)
  • Relay 1 & 2 (Alarm):
    • Operation: ON/OFF
    • Selectable Action: High / Low
    • Set Point: High/10.0 g/L; Low/4.0 g/L (adjustable)
    • Hysteresis: 0.01 g/L (adjustable)
    • Relay Contacts: 5A/250VAC; 5A/30VDC
  • Relay 3 (Wash Relay):
    • Wash Interval: 0.1~1000 hours
    • Wash Time: 1~1000 seconds
    • Relay Contacts: 5A/250VAC; 5A/30VDC

Interface:

  • RS 485 Modbus RTU
    • Baud Rate: 9600 bps
    • Data Format: 8-bit

General Information:

  • Power Supply: 90 - 260V AC, 50/60Hz; 24VDC (Optional)
  • Temperature:
    • Operating Temperature: 0 - 60°C
    • Storage Temperature: -20 - 70°C
  • Humidity: Max. 90% rH at 40°C (non-condensing)
  • LCD Display: Displays Suspended Solids Value and Relay Status
  • Language: Chinese / English
  • Passcode: Set Mode: 0022, Calibration Mode: 0011
  • Protection Grade: IP65
  • Dimensions: 160 * 166 * 73mm
  • Installation: Wall Mounting
  • Weight: 1Kg

Sensor Information:

  • Type: Dimens 810T
  • Material: 316L/PVC Shell, Special Optical Glass
  • Size:
  • Diameter: 42mm
  • Length: 210mm
  • Connection: 1” GAS
  • Cable: 10m
  • Max. Pressure: 4 bar
  • Protection Grade: IP68

Elevate your water quality analysis with the Dimens 800T Turbidity/Suspended Solids Analyzer – your gateway to precision and reliability. Call to action: Explore the power of accurate measurement now!
