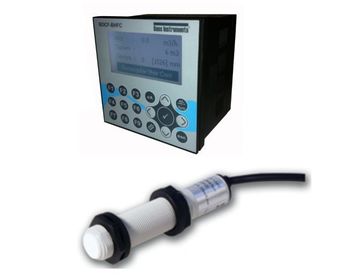

Open Channel Ultrasonic Flowmeter

Open Channel Ultrasonic Flowmeter measures and records instantaneous and total flow amount in a channel. They are non-contact products that mounted top of channel to be measured and has IP68 protection class. Because of these properties do not required maintenance and is not affected by rain.Open Channel Ultrasonic Flowmeter shows instantaneous and total flow information in screen and also saves to memory.

Application Areas

• Flow Measurement in Open Channel
• Houshold Waste Channels Flow Measurement
• Flow Measurement of Open Channel Lines of Public and Municipal
• Flow Measurement Existing Weir In River

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Input : Ultrasonic Level Transmitter

• Adjustable Outputs : 4-20 mA DC and Pulse (dry contact, 1A 250V max)

• Analogue Input Resolution : 14 bit

• Sensor Measuring Range : 0…2 m or 0…3,5 m

• Graphical Representation : 128x64 pixel graphic LCD
• Humidity : %10...85 non-condensic

• Supply : 24 VDC ( ±15%) ops.230VAC

• Power Consumption : 10 W max.

• Protection : IP65 Panel,IP67 sensor (ops.IP68 sensor)

• Dimensions : 96x96 mm (front) , 92x92 mm (back) , Depth 87,5 mm
• Datalogger: USB record
• Its Support Weir: Parshall,Rectangular,V-Notch,Cipoletti
• Precision: % 0,2
• Comport: RS485 modbus RTU
