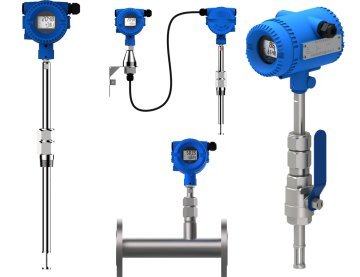

Thermal Mass Gas Flow Meter DMS600


DMS60 thermal mass flow meter measures air, nitrogen, O2, CO2, argon, CH4, natural gas, biogas and almost all gases. The DMS45 mass air flow meter provides accurate, reliable, high precision and high stability measurement at an economical cost. Thermal mass flow meter can be used very easily in a limited area and in high pressure pipes with its compact design and appropriate probe model.


● 0.3 m/sec on all lines from 1” ~ 80”. lower limit flow measurement up to 1:100 lower limit upper limit measurement ratio
● Temperature range as high as 450°C
● Standard product up to 16 Bar. Special version up to 63 Bar
● It measures Air, Nitrogen, O2, CO2, Argon, CH4, Natural gas, biogas and almost all gases.
● Pulse, 4-20mA HART, RS485 Modbus Outputs are available.
● Easy installation under high pressure
● Possibility to remove and install the thermal mass flowmeter without stopping the line during the installation phase
● 2 lines LCD Display
● Direct Mass flow measurement. It does not require pressure and temperature compensation.
● Almost zero pressure loss due to no moving parts
● Isolated electronic design to eliminate electrical noise

Technical Properties

  • Type:DMS600
  • Mounting Type: Immersion Type or Line Type
  • Fluid Compatibility: Air, Nitrogen, O2, CO2, Argon, CH4, Natural gas, biogas and almost all dry and clean air
  • Pipe diameter: DN25~600mm
  • Flow rate range: 0.3~30Nm/h or 0.6~60Nm/h or 0.9~90Nm/h or 1.2~120Nm/h
  • Sensitivity: 0.5% RD + ±1.5% FS
  • Ambient temperature: -40~+150°C, -40~+250°C, -40~+450°C
  • Ambient pressure: 1.6MPa, 2.5 /4.0 /6.3 MPa
  • Power supply: AC85 ~ 265V or DC13.5 ~ 42V
  • Response Time: 1 second
  • Signal Output: Frequency: + pulse + 4 ~ 20Ma as standard
  • Communication: RS ~ 485 standard, 4 ~ 20mA @ HART
  • Display Values: Mass flow, Volume flow under normal conditions, Total flow, Ambient temperature. speed
  • Protection Class: IP65, IP67
