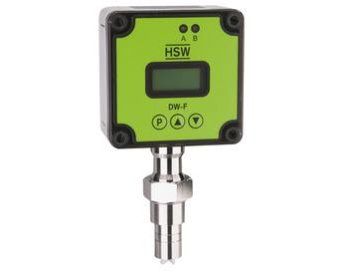

Henke DW-F Turbine Type Flowmeter


The DW-F flow transmitter is a supplement to the DW-D deflector flow transmitter and is equipped with a turbine sensor. The device type DW-F corresponds exactly to the structure of the device type DW-D, except for the sensor system. The DW-F operates with a turbine instead of a flow pedal. This offers additional possibilities to ideally adapt the HSW DW-F flow transmitter to the respective application areas.

Turbine Flowmeter Measurement Principle

  • High measuring accuracy and very wide measuring range for liquids
  • High quality bearing
  • High sensitivity over a wide temperature range
  • Very good price/performance ratio

Technical Properties

  • Model: DW-F
  • Body Material: Stainless Steel, Brass, PVC
  • Maximum Temperature: -20-80 C
  • Maximum Pressure: 25 Bar
  • Electrical Output: Pulse Output
  • Process Connection: 3/8'', 1/2'', 3/4'', 1'' ,1 1/4'', 1 1/2'', 2''
  • Protection Class: IP 65
  • Working Power: 200 mA max.
  • Power Supply: 24 V DC ± 10 %
  • System Transmission System: Pulse/Hall sensor
  • Body Material: Brass or Stainless Steel
  • Pedal Material: POM
