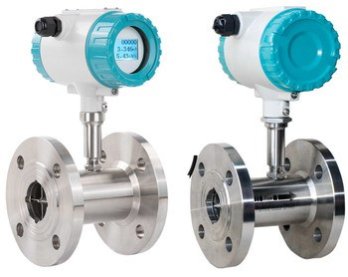

Stainless Steel Flanged Type Turbine Flowmeter

Technical Properties:

• Connection Diameter: DN4-DN200mm
• Flow Range: 80 - 800 m3/h with 0.04….4.5 L/min
• Accuracy: ±0.5% of reading
• Body Material: SS304, SS316L
• Impeller Material: 2Cr13, CD4Mcu
• Bearing material: Hard Alloy
• Guided Element: Hard Alloy
• Temperature: -20℃～80℃; (-20℃～120℃ optional)
• Ambient temperature: -20℃～70℃
• Communication: RS485, Hart (optional)
• Signal Output: 4 ~ 20 mA, Pulse
• Power supply: 24 VDC, or powered by 3.6 V lithium battery
• Viscosity:＜5mm2/sec
• Protection Class: IP65
• Ex-proof: ExiaIICT4, ExdIIBT6 (optional)
• Pressure Class: 1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa, 6.3 MPa
• Measurement Ratio: 1:10 Standard; (1:15; 1:20 optional
