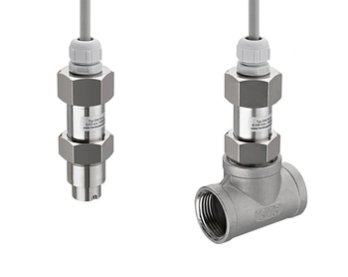

Henke DW-FS Turbine Type Flowmeter


Henke DW-FS turbine type flowmeter by limiting the main function (analog output signal) a compact design has been achieved at an extremely affordable price. It works according to the wing wheel principle. The signal is transmitted using a Hall sensor and magnet. A customer-specific programmed 4-20mA or frequency output signal is given. This makes it possible to individually adapt the system to the respective application.

Technical specifications

  • Model: DW-FS
  • Body Material: Stainless Steel
  • Operating Temperature: -40-100 C
  • Maximum pressure: 25 Bar
  • Electrical Output: 4-20 mA or Frequency output
  • Process Connection: 3/8'', 1/2'', 3/4'', 1'', 11/4'', 11/2'', 2''
  • Maximum Supply: 12-24 VDC
  • Protection Class: IP65
  • Pedal Material: POM
  • Electrical Connection: 3 cm cable
  • Power Source: 12-24 VDC
